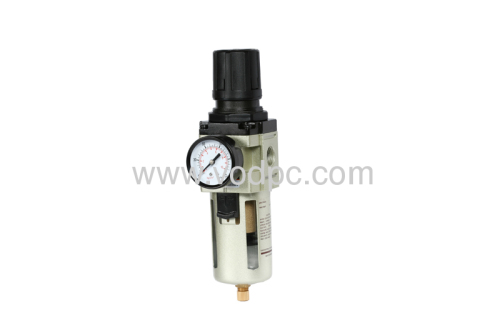

SMC Air filter regulator from China manufacturer

Price:	4.0~7.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: AW2000-02,AW3000-03,AW4000-...

Production Capacity: 5000pcs/month

Delivery Date: 3days

Operating Fluid: Compressed air

Filtering Element Roughness: 5um,25um,40um

Operating Temperature Range: -30 to 125 deg F.

Drain type: Manual ,Automatic drain

Means of Transport: Air

Packing: 250pcs/Carton

Brand Name: E.DO

Joint Pipe Bore: G1/8-G1

Ensured Pressure Resistance: 1.5Mpa

Capacity of Filter Cup: 15cc ~ 60cc

Weight: 0.15kg

The port size of A Series Air Treatment Unit is from M5 to 1 ".

AW Series Filter&Pressure-relief valves

It is designed in combination of filter and relief-pressure valve,with less installation space and easy operation.

Adapter caliber:G1/8"~G1"

Max.Working pressure:1.0Mpa

ordering information:

model	port size
aw1000-m5	m5
aw1000-01	1/8"
aw2000-01	1/8"
aw2000-02	1/4"
aw3000-02	1/4"
aw3000-03	3/8"
aw4000-04	1/2"
aw4000-06	3/4"
aw5000-06	3/4"
aw5000-10	1"

(overall size of aw1000,aw2000 micro air filter regulators)

The port size of A Series Air Treatment Unit is from M5 to 1 ". In the current product family, It has the most complete specifications, big flow rate. And the installation and maintenance is very simple, which coupled with manual and automatic drainage drainage-type type (only in 2000 or more size selection). It is our E.DO one of the best-selling line of products.
