norgren Miniature General Purpose Filter from China manufacturer

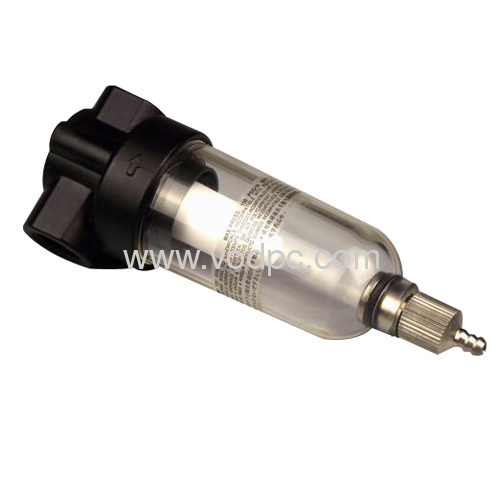

norgren Miniature General Purpose Filter

Price:	3.5~5.5 USD
Payment Terms:	T/T,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: f07-100-m1ta,f07-200-m1ta

Production Capacity: 5000pcs/month

Delivery Date: 5days

Stock Item: Yes

Flow: 24 scfm

Operating Temperature: -30 to 125 deg F.

Drain type: Manual ,Automatic drain

Means of Transport: Air

Packing: 250pcs/Carton

Brand Name: E.DO

Port Size: 1/4 ,1/8

Operating Pressure: 150 p.s.i.

Filter Element: 5um , 25um ,40um

Weight: 0.15kg

Model include PTF threads, automatic drain, transparent bowl and 5um element.
Alternative for F07-200-m1TA

Product name:Miniature Series 07 General Purpose Filter
Port Sizes:1/8" and 1/4"
Compact design:
Protects air operated devices by removing liquid and solid contaminants
Screw-on bowl reduces maintenance time.
Can be disassembled without the use of tools or removal from the air line.

ordering information:

port size	model numbers	flo scfm(dm3/s)	weight(kg)
1/8"	f07-100-m1ta	19(9dm3/s)	0.13kg
1/4"	f07-200-m1ta	24(11.5dm3/s)	0.13kg

Technical data
Fluid:Compressed air
Maximum pressure:
Transparent bowl: 150 psig (10 bar)
Metal bowl: 250 psig (17 bar)
Operating temperature:*
Transparent bowl:-30° to 125°F (-34° to 50°C)
Metal bowl:-30° to 175°F (-34° to 80°C)
* Air supply must be dry enough to avoid ice formation at temperatures below 35°F (2°C)
Particle removal:5 μm or 40 μm filter element
Air quality:Within ISO 8573-1, Class 3 and Class 5 (particulates)
Materials
Body: zinc
Transparent bowl: Polycarbonate
Metal bowl: Zinc (without sight glass)
Element: sintered polypropylene
Elastomers: neoprene & nitrile
For water extraction information please contact ApplicationsEngineering.
Typical Performance Characteristics:

(overall size of f07-100-m1ta,f07-200-m1ta,f07-100-m3ta,f07-200-m3ta norgren type micro filter)
