iso6020-2 tie-rod hydraulic cylinders from China manufacturer

Price:	30.0~200.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: MOB63-500

Production Capacity: 2000PCS/Month

Delivery Date: 2-5weeks

Bore size: 30,40,50,63,80,100,125mm

Pressure ranges: 0.3-7.0mpa

Speed ranges: 8-300mm/sec

Means of Transport: Ocean,Air

Packing: Wooden case

Brand Name: E.DO

fulid: filtered oil

temperature: -10~80

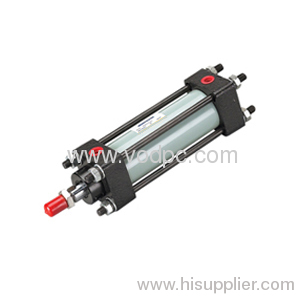

MOB series Light type hydraulic cylinders

1.Product name:MO series Light type hydraulic cylinders
MO tie-rod hydraulic cylinders,light oil cylinders,model:MOB63-500

(MOB basic type tie-rod hydraulic cylinders,order example:MOB63×500)

MO series hydro-cylinder is light type hydraulic cylinder, give the derive cylinder of double rod type and stroke adjustable type, varies of installments are optional to meet different requirement, also can be customized. Widely used in hydro-power engineering projects, metallurgical industry, construction industry, aviation and cosmonautical industry, cranes, textile & chemical industry, plastic injection mounding machines, elevators, ship-lifts, offshore well-drilling platforms, etc.

2.Specification:

Bore(mm)		30	40	50	63	80	100	125
Max.Stroke(mm)		1200		2000			3000
Light type	Rated.Pressure	70kgf/cm²
	Resistant.Press	140 kgf/cm²
Min.Start Press		3 kgf/cm²
Operation temperature		0-80ºC
fluid		Hydraulic oil

(MOD Adjustable tie-rod oil cylinders,order example:MOD63×100-50)

3. How to order MO series tir-rod hydraulic cylinders

MO
C
50x
50   -
25            -
            S      -
FA
|
|
|
|
|
|
|
Type
MMI

B: Standard Double Action
C:Double-shaft Double Action
D: Adjustable Stroke
Bore
Stroke

MOD: Adjustable stroke Type
Magnet Code

Blank: Without Magnet
S:With Magnet
Fixed Type

Blank:Basic Type
LB:Front and Back Fixed Type
FA(B):Front(Back)Cover
Fixed Type
CA:Back Cover Fixed Type
(Single Earring)
CB:Back Cover Fixed Type(Double Earring)
TA:Head Swing Type
TC:Middle Swing Type

4.Remark:
(1):
Self-lubricating bearing, so shaft is no more need lubrication

Add adjustable stroke on the end of cylinder, so that cylinder can change the position smoothly

(Please inform in advance when order)

(2) :
varies of accessories are optional to meet different requirement

Adopt high-temperature resistant seal, so that hydraulic cylinder can be work at 180°C

(Please inform in advance when order)

(3):
Put a adjustable screw on the end of shaft, that cylinder can be adjustable during stroke

(Please inform in advance when order)
(4)

On the base of standard cylinder can produce varies of non-standard hydraulic cylinders and oil cylinders to meet different requirement.

1) With self lubricating bearing, the piston rod is lubrication free
2)Adjustable cushion on both end covers to make sure the cylinder works very smoothly and with low noise
3) Magnet and sufficient fixin styles are available.
