airtac gr200 and gr300 micro pressure regulator from China manufacturer

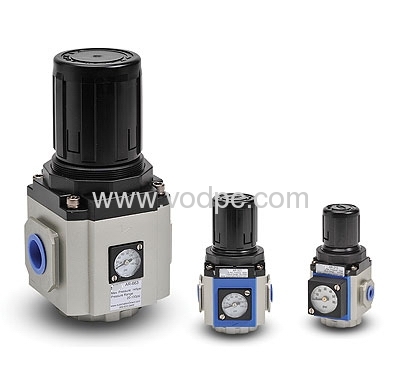

airtac gr200 and gr300 micro pressure regulator

Price:	10.0~15.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: GR200-08gr300-15

Production Capacity: 20000pcs/month

Delivery Date: 3days

Operating Fluid: air

Ports: G1/8-G1/2

Operating temperature: -20 - 80°C

Inlet: 250 PSI MAX

Capacity of Filter Cup: 15cc~ 80cc

Means of Transport: Air

Packing: 200pcs/Carton

Brand Name: E.DO

Materials: Aluminum , technopolymer, N...

Filtering Element Roughness: 40um

Nominal flow: see graphs

Outlet: 0.5~135 PSI

Container Cup: PE

Air treatment units product ------ G Series filter and regulator and oiler are same style as AIRTAC.

GC F.R.L air treatment units are same style as AIRTAC.It includes 3 parts: filter, regulator and lubricator. It has standard dimensions and steady performance. We manufacture all important parts by ourself to insure the quality. Outsourcing parts were selected and tested very strictly. Auto Drain can be selected.

The port size of A Series Air Treatment Unit is from PT1/8~1/2".In the current product family, It has the most complete specifications, big flow rate. And the installation and maintenance is very simple, which coupled with manual and automatic drainage drainage-type type (only in 2000 or more size selection).

ordering information:

model	port size
gr200-06	1/8"
gr200-08	1/4"
gr300-08	1/4"
gr300-10	3/8"
gr300-15	1/2"

Operating Fluid: Air
Joint Pipe Bore: G1/8 ~ G1/2
Filtering Element Roughness: 40μm
Range of Adjustable Pressure :0.05-0.85MPa
Max. Adjustable Pressure :0.95MPa
Ensured Pressure Resistance: 1.5MPa
Operating Temperature Range: 5-60
Capacity of Filter Cup :15cc ~60cc
Capacity of Oil Feed Cup :25cc~ 90cc
Suggested Lube: ISO VG32 or Same Grade Oil
Weight :0.7Kg~ 0.9Kg
Material Body: Aluminum Die-casting Forming
Container Cup: PE
Protective Cup Cover : iron
