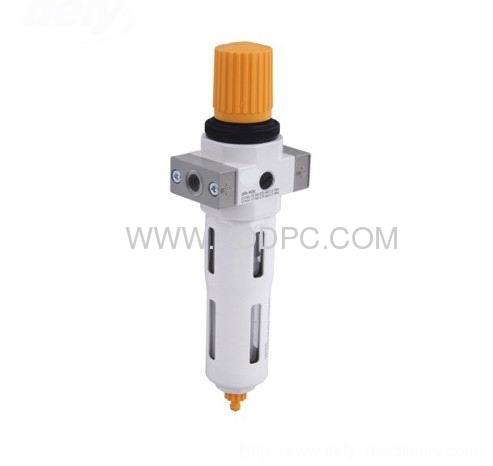

festo air filter regulators from China manufacturer

Price:	16.0~28.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: OFR-MINI-1/4

Production Capacity: 1000pcs/month

Delivery Date: 3days

Operating Fluid: air

Ports: PT1/4

Operating temperature: -20 - 80°C

Inlet: 250 PSI MAX

Capacity of Filter Cup: 15cc~ 60cc

Means of Transport: Air

Packing: 20pcs/Carton

Brand Name: E.DO

Materials: Aluminum , technopolymer, N...

Filtering Element Roughness: 40um

Nominal flow: see graphs

Outlet: 0.5~135 PSI

Container Cup: PE

Air treatment units product ------ OFR-MINI filter and regulator are equivalent to festo filter regulator.

OFR filter+regulater
Introduction
Filter and pressure regulator combine a single unit,and cleans the compressed air of fluid oil,condensation and dirt particles.For special application,the sta ndard 40μm filter element may easily be replaced by a 5μm
filter element
The OR maintain im putting constant operating pressure despite fluctuation in line pressure and the amount of air consumed.

Symbol

Ordering Code

OFR 1/4 * * MINI *
| | | | | |
Model Connection Grade of filtration Manomter Size Drain way
1/8 1/4 3/8 1/2 3/4 1 Blank:40μm 5M:5μm Blank:12bar 7:7bar MINI MIDI MAXI Blank:Manual condensate drain
A:Automatic condensate drain

Specification

Service units MINI MIDI MAXI
Manual condensate drain Working pressure: 12bar,40μm OFR-1/8-MINI OFR-1/4-MINI OFR-3/8-MINI OFR-3/8-MIDI OFR-1/2-MIDI OFR-3/4-MIDI OFR-3/4-MAXI OFR-1-MAXI
Working pressure: 7bar,40μm OFR-1/8-7-MINI OFR-1/4-D-7-MINI OFR-3/8-7-MINI OFR-3/8-7-MIDI OFR-1/2-7-MIDI OFR-3/4-7-MIDI OFR-3/4-7-MAXI OFR-1-7-MAXI
Working pressure: 12bar,5μm OFR-1/8-5M-MINI OFR-1/4-5M-MINI OFR-3/8-5M-MINI OFR-3/8-5M-MIDI OFR-1/2-5M-MIDI OFR-3/4-5M-MIDI OFR-3/4-5,-MAXI OFR-1-5M-MAXI
Automatic condensate drain Working pressure: 12bar,40μm OFR-1/8-MINI-A OFR-1/4-MINI-A OFR-3/8-MINI-A OFR-3/8-MIDI-A OFR-1/2-MIDI-A OFR-3/4-MIDI-A OFR-3/4-MAXI-A OFR-1-MAXI-A
Working pressure: 7bar,40μm OFR-1/8-7-MINI-A OFR-1/4-D-7-MINI-A OFR-3/8-7-MINI-A OFR-3/8-7-MIDI-A OFR-1/2-7-MIDI-A OFR-3/4-7-MIDI-A OFR-3/4-7-MAXI-A OFR-1-7-MAXI-A
Working pressure: 12bar,5μm OFR-1/8-5M-MINI-A OFR-1/4-5M-MINI-A OFR-3/8-5M-MINI-A OFR-3/8-5M-MIDI-A OFR-1/2-5M-MIDI-A OFR-3/4-5M-MIDI-A OFR-3/4-5M-MAXI-A OFR-1-5M-MAXI-A
Manometer 0~12bar OMA-40-16-1/8 OMA-50-16-1/4
0~7bar OMA-40-10-1/8 OMA-50-10-1/4
Medium Compressed Air
Features of structure Sintered filter with water sparator;MINI/MIDI:Diaphragm type regulator;MAX:Piston type regulator
Mounting type Pipe mounting or foot mounting
Assembly position Vertical ±5°
Connection G1/8 G1/4 G3/8 G3/8 G1/2 G3/4 G3/4 G1
Standard nominal flow rate OU-…(-A) 750 1400 1600 3100 3400 3400 9000 10000
OU-…-7-(-A) 900 1500 1700 3400 3900 4000 9500 16000
OU-…-5M-(-A) 650 1200 1350 2400 2500 2600 7300 7600
Primary pressure Manual condensate drain 1~16bar
Automatic condensate drain 1.5~12bar
Working pressure 0.5~12bar/0.5~7bar
Grade of filtration 40μm/5μm
Capacity of condensate fluid 22ml
Temperature range 0~60℃
Materials information Housing:Zinc die-casting;Filter bowl/oil bowl:PC;Metal bowl guard:Aluminium alloy;Sealing:NBR;Adjusting knob:POM

Model	E3	E4	E5	E6	E8	E9	F1	F2
OU-…-MAXI	40	39	76	95	64	52	G1/8/G1/4/G3/8	M36X1.5
OU-…-MINI	55	47	93	112	85	70	G1/8/G1/2/G3/4	M52X1.5
OU-…-MIDI	66	53	104	124	96/116	90/90	G3/4/G1	M36X1.5

Model	F3Φ	F4	F5Φ	F6Φ	L1	L2	L3	H1	H3	H4	H5	H6
OU-…-MAXI	31	M4	4.5	40	44	35	11	194	69	17.5	20	15
OU-…-MINI	50	M5	5.5	52	71	60	22	250	98	24.5	32	15
OU-…-MIDI	31	M5	5.5	63	71	60	22	252	80	24.5	32/40	15
