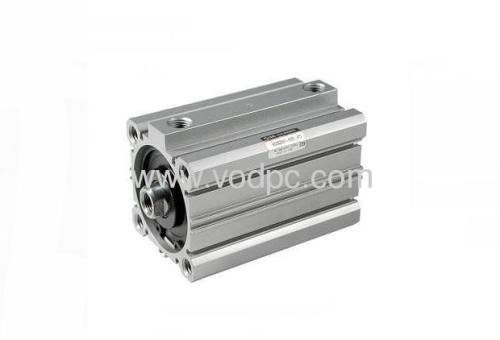

smc CQSB compact cylinder from China manufacturer

Price:	5.0~100.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: CQSB20-10

Production Capacity: 20000pcs/month

Delivery Date: 3days

Model: CQSB20-10

Rod: 12-100mm

Means of Transport: Air

Packing: 100pcs/Carton

Brand Name: E.DO

Materials: Alu alloy

Stroke: 5-250mm

CQ2 series compact air cylinder
DETAILS ABOUT CQ2 TYPE COMPACT AIR CYLINDER, PNEUMATIC CYLINDER.

Ordering information of CQSB,CQSKB CQSWB compact cylinders:

cqsb12,cqsb16,cqsb20,cqsb25 compact cylinders for air

(ordering model number as CQSB12,CQSB16,CQSB20,CQSB25 compact pneumatc cylinders)
specification:

(specific of cqskb12,cqskb16,cqskb2,cqskb25 non-rotaring compact cylinders )
dimension:
cqsb12,cqsb16,cqsb20,cqsb25 compact cylinders for air

(dimension of cqswb12,cqswb16,cqswb20,cqswb25 super compact cylinders)
cqsb12,cqsb16,cqsb20,cqsb25 compact cylinders for air

• For the following bore/stroke sizes, through-hole is threaded over the entire length.
Basic style ø12 and ø16; 5 stroke, ø20; 5 to 15 stroke, ø25; 5 and 10 stroke, ø20 with auto switch built-in magnet; 5 stroke.
• Rubber bumper style has the same dimensions as those indicated above.
• Note on dimensions: Except where indicated, metric (mm) dimensions are shown. 1inch = 25.4mm
