airtac sda25 compact cylinder from China manufacturer

Price:	5.0~100.0 USD
Payment Terms:	T/T,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: sda25-10

Production Capacity: 20000pcs/month

Delivery Date: 3days

Model: SDA

Rod: 12-100mm

Means of Transport: Air

Packing: 100pcs/Carton

Brand Name: E.DO

Materials: Alu alloy

Stroke: 5-250mm

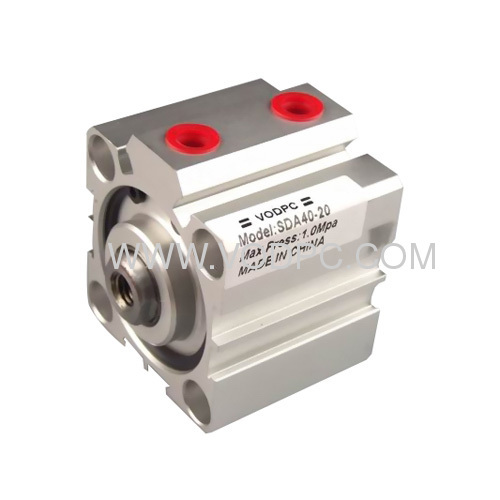

SDA series compact air cylinder
DETAILS ABOUT SDA TYPE COMPACT AIR CYLINDER, PNEUMATIC CYLINDER.

SDA series thin cylinder design made for the Asian market, the bore from 12mm to 100mm is optional. As to the acting type we have double acting, double adjustable acting, single extend acting, single return acting etc. The rod side teeth within conventional-shaped teeth, outer teeth, toothless three kinds of connections. The crash pads buffer types effectively reduce the impact on the cover.

Instruction about the compact cylinder:

Stainless steel compact cylinder, pneumatic power

ISO standard compact cylinder

S: With magnet
LB means mounting type This is ISO style cylinder, for the heavy duty work .

C.Air Pressure range:0. 1~0.9Mpa

Proof pressure:1.35Mpa Temperature is from -5 to 70(If custmer request, we can make the pneumatic cylinder that work in the high temperature ) Speed range 50~800mm/s Cushion style Adjustable cushion Cushion stroke 24mm ,32mm Body material is Aluminum alloy Port size 1/8" 1/4" 3/8" 1/2"BSPT , or BSP or NPT , UNF

Any questions about the compact air cylinder, if you need to purchase some compact cylinder, You'd better to contact with us for the details about the compact cylinder.
